Mining / Heavy Duty

Mobile Actuators

Mining / Heavy Duty and Mobile Hydraulics

The rotary actuators of the M-DA-H series with the F5 / F10 are mainly designed for the mobile sector. Based on the helical principle it is a compact solution with a max. operating pressure of 210 bar and a torque with up to 83,000 Nm.
Especially for applications where high holding torques are required, these drives can be used optimally. The proven design and the compact manufacturing round off the overall picture. The use of high quality materials guarantees maximum durability.

Hello, my name is Kai Frischkorn.
I'll be glad to support you with any query. Just give me a call!

fon: +49 6053 6163-624
e-mail: k.frischkorn(at)hks-partner.com

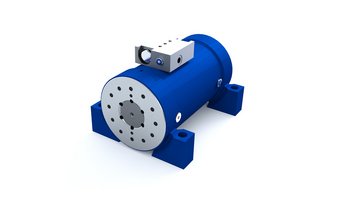

M-DA-H F5

  • Foot mounting

  • Angle of rotation from 180° up to 360°

  • High holding torque

 MORE DETAILS

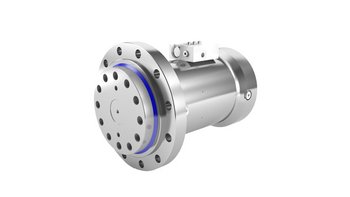

M-DA-H F10

  • Angle of rotation from 180° up to 360°

  • Fixing shaft

  • Load holding valve

MORE DETAILS

DA-H

  • HKS actuator with angular adjustment and end position cushioning

  • Progressive readjustment of the spring

  • Improved bearing efficiency with 4-point bearing

MOrE Details

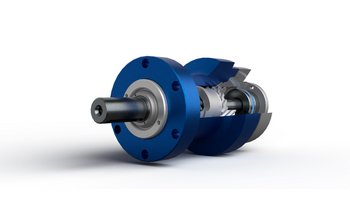

I-DA-H

  • All sliding surfaces are surface-hardened

  • Rotary pistons can be run to their end stop positions and loaded

  • Rotation angle or end stop query possible via standard camshaft

 MOrE Details

Maximum carrying capacity and precise positioning

The HKS rotary actuators are designed for the maximum carrying capacity and precise positioning. The M-DA-H F10 is most suitable for extreme conditions – as well as all other actuators for the mining and automotive sector. Extremely sturdy and protected against environmental influences. Thus low maintenance and ensuring

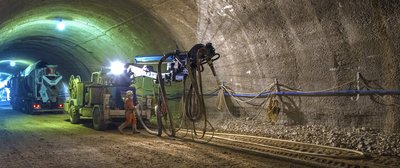

high degree of durability. Our rotary actuators have been operating reliably and safely in the biggest mines in the world for many years.

Contact us, we will give you all the necessary details on the differences of the actuators and will find the right one for your requirements or especially design it for you.
