Drehantrieb-Hydraulisch-IDAH-HKS-Welle-Passfeder-Standard-Schnittmodell

Form follows function.

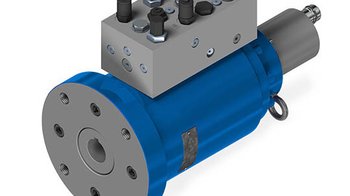

I-DA-H ROTARY ACTUATOR

This mobile hydraulic system is utilized in various industries, such as:

Industry, mechanical & plant engineering

You can find more about this industry and inspiration for other possible applications with this rotary actuator in our industry overview.



More details on the industry

Specifications

Working Pressure up to 250 bar
Torque up to 250.000 Nm
Angle of Rotation up to 1.080°
Special Angle of Rotation up to 1.500°
All sliding surfaces are surface-hardened
Rotary pistons can be run to their end stop positions and loaded
Rotation angle or end stop query possible via standard camshaft
Improved bearing efficiency with four-point bearing
Any intermediate rotation angle possible
Angular adjustment as standard
Improved end position cushioning (as standard)
State-of-the-art sealing technology
Stepless adjustment of the shaft position

Applications

Industry, Machinery



More Applications

Waterworks    Sewage Works     Hydraulic Steel     Water Distribution     Chemical and Pharmaceutical Industry Air Conditioning and Ventilation Industry     Shipbuilding     Steelworks     Food Industry     Geothermal Power Plants     Solar thermal power plants     Biogas Power Plants     Power Plants (water, coal, gas, oil, nuclear)     Exploration     Offshore Plants     Refineries     Pipelines     Tank Farms

Further options

  • Drive shaft with different Splined shafts profiles
  • Drive shaft with second drive journal
  • Design of the drive shaft and mounting flange according to customer requirements
  • Angle of rotation adjustment over the entire swivel range
  • Limit switch device
  • Angle of rotation query
  • All intermediate rotation angles are available
  • Rotation range over 360
  • Sea and seawater resistance
  • Attachment bearing for high radial forces
  • Change in direction of rotation
  • Pneumatic design
  • Aluminum housing
  • In accordance with ATEX product directive
  • Connections for servo interfaces possible
  • Version for bio-oil or other pressurized fluids possible
  • Other special designs possible

All aspects considered!

Hydraulic rotary actuators - advantages as standard

Hydraulisch-Drehantrieb-HKS-I-DA-H-Explosionszeichnung-Teilansicht

1. sealing ring

2. shaft with bearing

3. control shaft

4. housing

5. damping

6. bleed screws

7. piston

8. adjusting screw

9. gear ring

10. base

11. load holding valve (optional, not shown)

Your Advantages

All sliding surfaces are surface-hardened

  • Reduces wear
  • Increases effectiveness

Rotary piston

  • Rotary pistons can be run to their end stop positions and loaded
  • No external end stops required

Rotation angle or end stop query possible via standard camshaft

  • Precise positioning of rotation angle

Improved bearing efficiency with four-point bearing

  • For handling strong radial and axial forces
  • For greater longevity

Any intermediate rotation angle possible

  • Customer-specific adaptation and integration in existing system

Angular adjustment as standard

  • Exact final positioning
  • ±4° Angular adjustment

Improved end position cushioning (as standard)

  • Soft braking of mass moments of inertia
  • Results in greater longevity for the entire system

State-of-the-art sealing technology

  • Ensures less wear
  • Longer service life for the entire system
  • No internal leakage
  • Increases safety
  • Working pressure up to 250 bar
  • Torque up to 100,000 Nm
  • Standard rotation angles 90°, 180°, 270° and 360°
  • Improved end position cushioning as standard
  • Stepless adjustment of the shaft position
  • Connection to all common fittings
  • ATEX

Get the right answers.

Get in touch now

+49 6053 6163 - 0

Kai Frischkorn HKS
Kai Frischkorn HKS

Kai Frischkorn

Head of Application Technology

Your contact for:

  • Sales (Industry)

All contact persons

There are no limits to your ideas

Multi-turn actuators - Shaft options

The shaft variant is available with a centering bore and in accordance with various DIN standards. You can see examples of the various options here.

Drehantrieb-Hydraulisch-IDAH-Welle-Passfeder-HKS-Standard

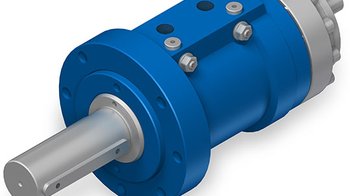

Shaft with feather key

Shaft with feather key

I-DA-H-Keilwelle-HKS-Drehmotor-Hydraulik-Industrieanwendung

Spline shaft

Spline shaft

HKS-Drehantriebe-IDAH-Hohlwelle-ISO-Industrie

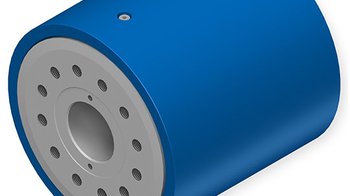

Hollow shaft

Hollow shaft

Drehantrieb-IDAH-Hohlwelle-Vierkant-Industrie-HKS

Hollow shaft with square

Hollow shaft with square

Industrie-Drehantrieb-Hohlwelle-Passfedernut-HKS-I-DA-H

Hollow shaft with keyway

Hollow shaft with keyway

Ideas that drive

Based on a precise analysis of your requirements, we develop the right innovative HKS multi-turn actuator for you. We employ an experienced team of technicians and development engineers to take all the inspiration and turn it into the optimum design for your requirements. We work closely with you, the customer. The result of this collaboration is the finished multi-turn actuator with the exact applications you require. We are happy to take on your challenges with passion.

HKS-Antrieb-Armatur-Industrie-Kugelhahn

Valve actuator

Valve actuator

HKS-Antrieb-Armatur-Biegemaschine-Industrie-Rohr-Blech

Bending machines

Bending machines

HKS-Antrieb-Deckelbetätigung-Deckelbeta-Tigung-Industrie

Cover actuation

Cover actuation

HKS-Behälter-Kipp-Vorrichtung-Industrie

Container tilting device

Container tilting device

HKS-Industrie-Drehantrieb-Kurbeltrieb

Crank drive

Crank drive

HKS-Industrie-Drehantrieb-Bohren-Bohrgerät

Track drive, drilling rigs

Track drive, drilling rigs

HKS-Industrie-Drehantrieb-Lineartransport

Linear transport

Linear transport

Industrie-Drehantrieb-Mischer-HKS

Mixer

Mixer

Industrie-Drehantrieb-HKS-Mischer-Schwenktisch

Swivel table

Swivel table

Industrie-Drehantrieb-HKS-Türöffner-Toröffner-Tür-Tor

Opening doors and gates

Opening doors and gates

Industrie-Drehantrieb-Transportband-Montageband-HKS

Conveyor and assembly belt

Conveyor and assembly belt

Industrie-Drehmotor-Werkzeugwechsler-HKS

Tool changer

Tool changer

Notes on planning the use of hydraulic rotary actuators

Whatever you have in mind, the rotary actuator can be optimally adapted. Many installation and connection options are available as standard, but customer-specific special solutions can also be implemented.
