Hydraulic Rotary Actuator I-DA-H

• All sliding surfaces of the HKS rotary actuator are surface hardened
• Rotary pistons can be driven and loaded up to their end stops
• Rotation angle or end position detection is possible via the standard control shaft

Hydraulic Rotary Actuator DA-H

• With optional end position damping and angle adjustment
• Infinite adjustment of the keyway possible
• Axial needle bearing

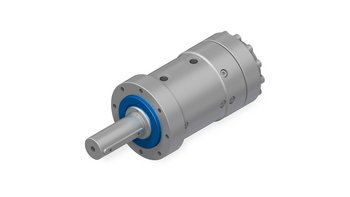

Rotary actuator DA-H-AL with aluminum housing

• High-strength aluminum housing
• All intermediate angles possible
• Innovative HKS technology with significant weight reduction compared to conventional steel housings

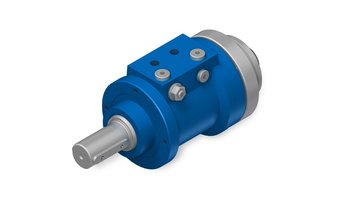

Rotary Actuator DKA

• Short version of the HKS rotary actuator
• Quick load changes
• Continuous drive shaft

Do you require something else?

Customized solutions for your industry are no problem for us. Our 10-member design team tailors each rotary actuator to your technical requirements.

XtraTilt rotary tilt motor

• 29 versions in 17 sizes for carrier machine weights up to 100 tons
• Extremely robust and durable
• Compatible with all common excavators and quick couplers
• Load display (XtraSense)

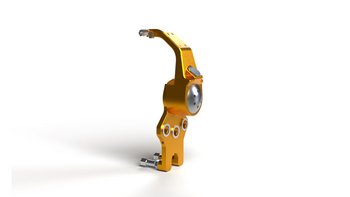

• Oil supply through (XtraFlow)

RotoBox - 360° continuous rotation

• Available in 7 sizes for carrier machine weights up to 55 tons
• 360° continuous rotation for flexible work and new working positions
• Very compact design and extremely robust

TiltRotator – 360° continuous rotation and 110° tilt angle without cylinder

• Narrow and compact design
• Highest quality and durability
• Up to 50° more tilt angle
• Maximum hydraulic rotary feedthrough
• Compatible with all common quick couplers and excavators
• 2D / 3D / GPS sensors and load sensing system (XtraSense)
• MiC 4.0 capable

Rotary Actuator M-DA-H

• Through-holes for lines or cables
• Cost-effective alternative for low and slow load changes
• Simple connection and installation

Rotary Actuator M-DA-H AL with aluminum housing

• High-strength aluminum housing
• Through-hole for lines or cables
• Cost-effective alternative for low and slow load changes

Rotary Actuator M-DA-H F1 with foot mounting

• Simple foot mounting
• High load capacity
• Easy connection and installation

Rotary Actuator M-DA-H F2 with foot mounting for Waste collection vehicles

• Easy foot mounting
• Double-ended shaft
• High load capacity and high load changes

Rotary Actuator M-DA-H F3 for mobile Plattforms

• Optional load holding valve
• Direct bolting to the boom

Rotary Actuator M-DA-H F3 with aluminum housing

• High-strength aluminum housing
• Weight reduction compared to steel housing
• High safety due to directly attached load holding valve (optional)

Rotary Motor M-DA-H F6 with load holding valve

• With load holding valve
• Through-holes for lines and cables
• Cost-effective alternative

Rotary Actuator M-DA-H F7 with foot mounting

• With load holding valve
• Simple foot mounting and installation
• High load capacity

Do you require something else?

Customized solutions for your industry are no problem for us. Our 10-member design team tailors each rotary actuator to your technical requirements.

Rotary actuator M-DA-H F5 with foot mounting

• Easy connection and installation
• High holding torques
• Highest axial and radial load capacity
• Highest bending moments
• Double-sided flange

Rotary actuator M-DA-H F10 with flange mounting

• Mounting flange
• Output flange
• Load holding valve
• High load capacity

Do you require something else?

Customized solutions for your industry are no problem for us. Our 10-member design team tailors each rotary actuator to your technical requirements.

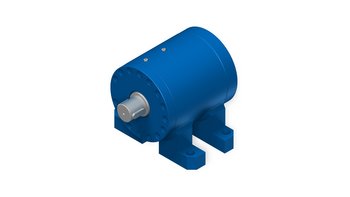

Rotary actuator M-DA-H F8 with foot mounting

• Short installation space
• Double-ended shaft
• Easy assembly

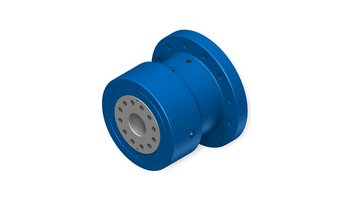

Rotary actuator M-DA-H F9 with flange mounting

• Bending moments up to 100,000 Nm
• Highest axial and radial forces
• Can take over bearing support

Do you require something else?

Customized solutions for your industry are no problem for us. Our 10-member design team tailors each rotary actuator to your technical requirements.

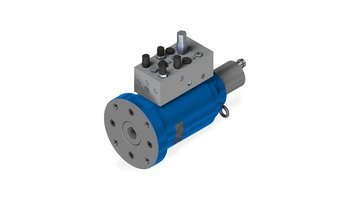

Actuator SA-H1 for valves

• ISO 5211 flange and other standard/custom flanges
• Precise positioning
• Emergency operation

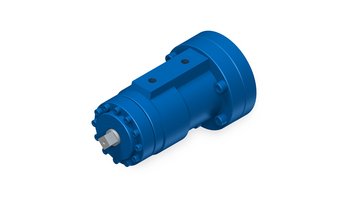

Actuator SA-H2

• Certification ATEX, SIL2
• Low maintenance
• Protection class IP65, IP67

Actuator SA-H3

• Double flange
• Ambient temperature -10° to 75° C
• Control shaft, position detection, proximity switch
• Various control blocks connectable

HydraHydraulic valve actuator AFR with spring return

• Spring return
• Special rotation angles possible
• ISO flange 5211 and other standard and special flanges possible
• Hollow shaft square, double square, one keyway or two keyways
• Emergency operation

Do you require something else?

Customized solutions for your industry are no problem for us. Our 10-member design team tailors each rotary actuator to your technical requirements.

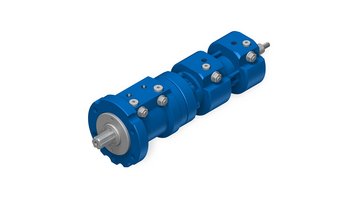

Rotary-Lift Combination DHK-H-ZH (Cylinder at the rear)

• Hydraulic rotary actuator with cylinder
• Power supply
• Including cable routing

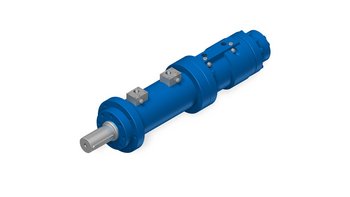

Rotary-Lift Combination DHK-H-ZV (Cylinder at the front)

• Hydraulic rotary actuator with cylinder
• Power supply
• Including cable routing

Do you require something else?

Customized solutions for your industry are no problem for us. Our 10-member design team tailors each rotary actuator to your technical requirements.

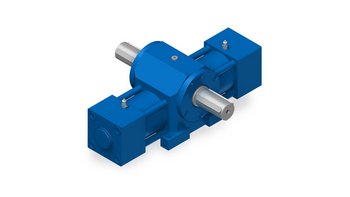

Rack and pinion drive DEK (single-piston)

• Foot mounting
• Face mounting
• Highest torques
• Compact axial length
• Minimal backlash
• Extremely robust

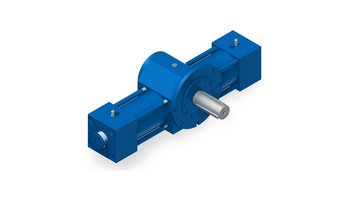

Rack and pinion drive DEK1 (single-piston)

• Foot mounting
• Face mounting
• Optional: Double-sided end position damping, rotation angle adjustment, control shaft

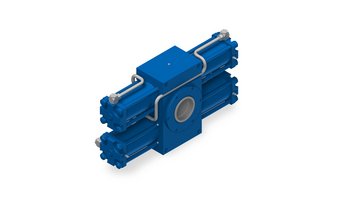

Rack and pinion drive DZK (two-piston)

• Foot mounting
• Face mounting
• Drive shafts with keyways or DIN 5480 spline profile
• Many additional features and custom designs available

Do you require something else?

Customized solutions for your industry are no problem for us. Our 10-member design team tailors each rotary actuator to your technical requirements.
