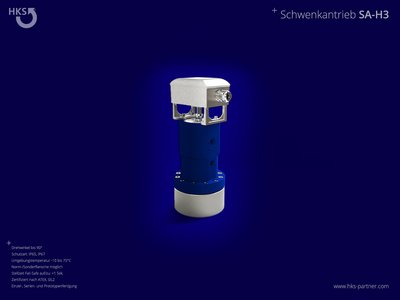

Hydraulic Actuator for fittings, butterfly valves and valves

SA-H3



Specifications

Working pressure up to 210 bar
Torque up to 250.000 Nm
Angle of rotation  up to 90° ±1  (Special angle possible)
Temperature range -10 to 75°C
Protection class IP65, IP67
Ability to position precisecly
ISO 5211 flange
Double flange
Angular adjustment (fine adjustment)
Weight reduced
Camshaft according to VDI / VDE 3845
for standard proximity switch
Optional VDI / VDE 3845 position check
Various control blocks can be connected for speed control, non-return valve and many more

Applications

On-/Offshore und Armatures



More Applications

Waterworks    Sewage Works     Hydraulic Steel     Water Distribution     Chemical and Pharmaceutical Industry Air Conditioning and Ventilation Industry     Shipbuilding     Steelworks     Food Industry     Geothermal Power Plants     Solar thermal power plants     Biogas Power Plants     Power Plants (water, coal, gas, oil, nuclear)     Exploration     Offshore Plants     Refineries     Pipelines     Tank Farms



Your Advantages

  • Small dimensions
  • All slidings surface hardened ground and polished
  • With the same torque in both directions
  • Variable interchangeable fastening types
  • No internal leakage, thus intermediate positions can be held exactly
  • Variable positioning of the drive shaft
  • Interchangeability of all components
  • For (almost) all media suitable
  • Cushioning on demand
  • Sealing material well known manufacturers
  • Using high-quality and high-strength materials
  • End positions can be queried by proximity switches
  • Various accessory items
  • Angle of rotation can be queried via digital or analog angle sensor
  • Your special requests are taken into account as fasr as possible
  • Good cost-performance ratio

PART-TURN ACTUATORS WITHIN APPLICATIONS
